JW60 DS Special
"World record here I come!"
The JW60 DS Special is the extreme version of the JW for those who fly in extreme wind. The double spar configuration affords the stiffest wing structure for extreme G's. The JW DS Special currently holds the world speed record for an all EPP plane at 244mph!
Wing Area: 570 Sq. In.
Airfoil: Joe Wurts design
Weight: 65 oz+
Wingloading: 16.45 oz / sq. ft.

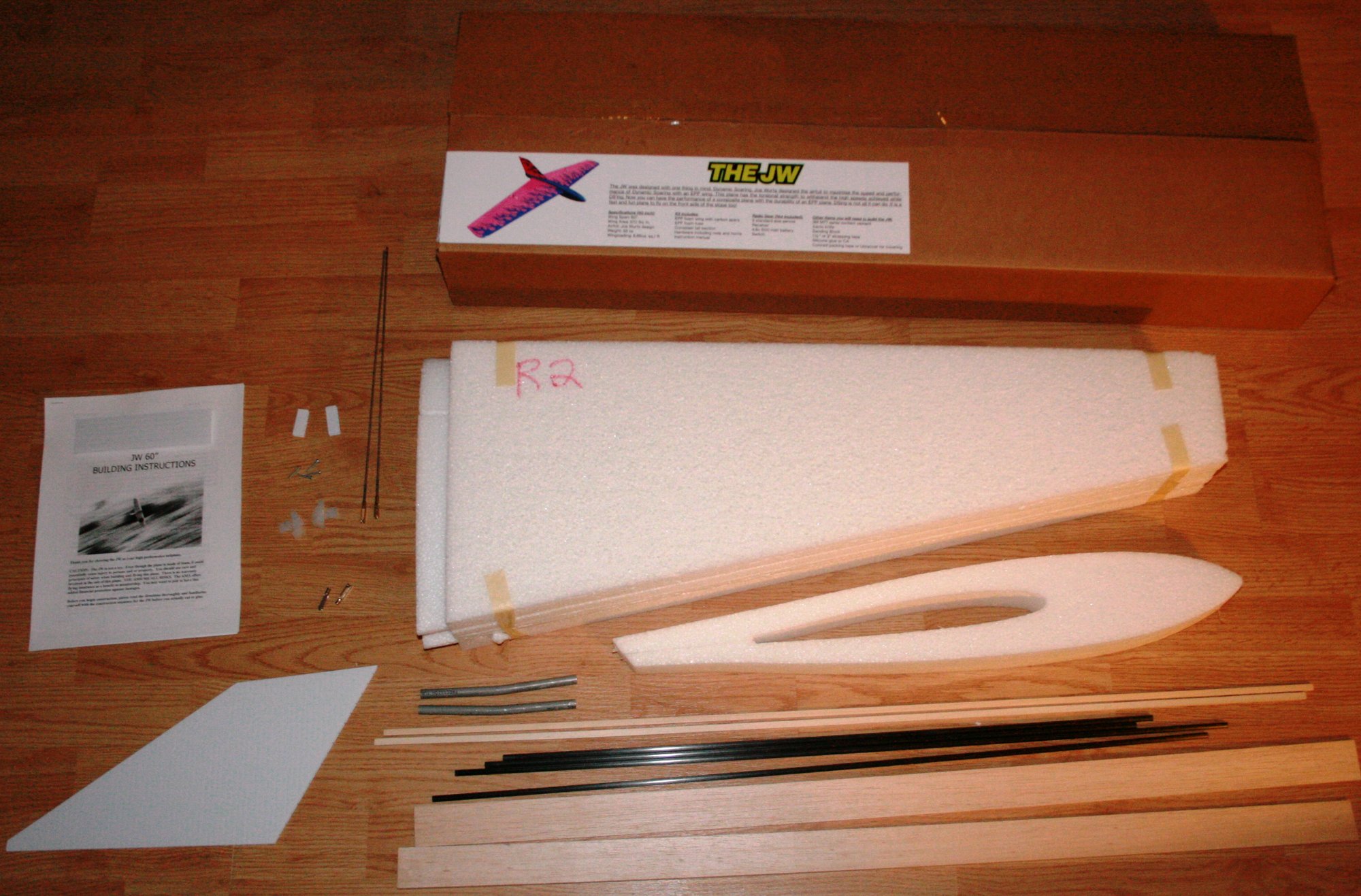

1.9lb EPP Wings (CNC cut w/ spar slots)
1.9lb EPP Fuselage (CNC cut w/ wing cutout and tail slot)
Dual Solid Carbon Spars (top and bottom w/ aluminum joiners)
Carbon Drag Spars
Extra Stiff Balsa Tapered Elevons
Coroplast Tail Section
4-40 Pushrods and Clevises
Large Nylon Control Horns
Radio Gear (Not Included):
2 Hitec HS-225MG Servos
1900 mah Battery
Additional Items Needed (Not Included):
3M 77 Spray Contact Cement
1 1/2" or 2" Strapping Tape
Silicone Glue or CA, Epoxy, Goop, Hot Glue
Colored Packing Tape or Ultracoat for covering
The JW pictured was finished in Topflite Monokote and colored Goop. The possibilities are endless with how you choose to finish your JW. Be creative, and share your creation on rcgroups.com!
