"Serious speed for the serious pilot!"
The JW60 Pro is an upgrade from the Classic. This version adds stiffness to the wing structure with upgraded spars. This is a popular option for those who fly in high winds all the time.
Wing Area: 570 Sq. In.
Airfoil: Joe Wurts design
Weight: 45 oz+
Wingloading: 11.39 oz / sq. ft.

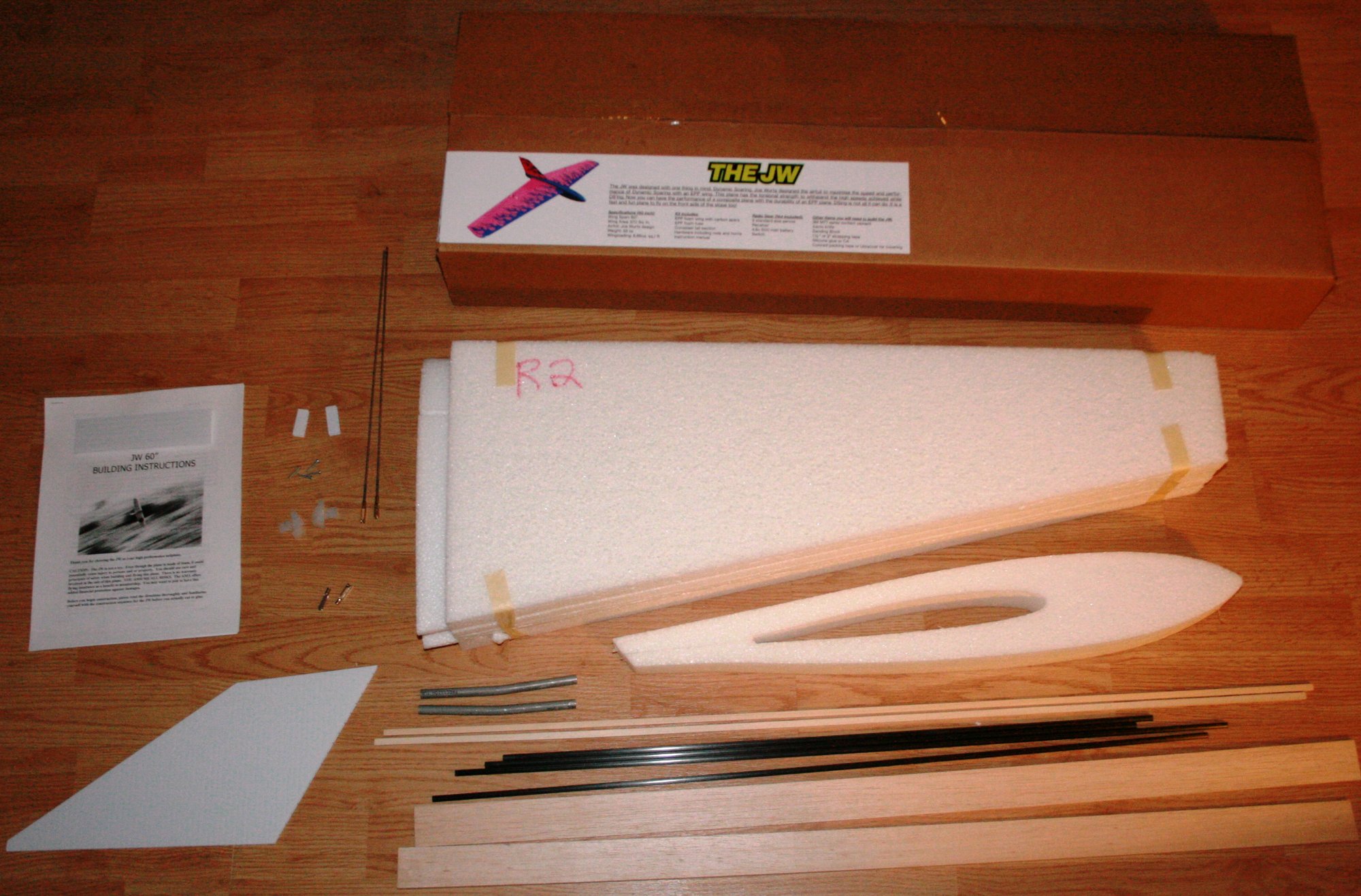

1.9lb EPP Wings (CNC cut w/ spar slots)
1.9lb EPP Fuselage (CNC cut w/ wing cutout and tail slot)
Solid Carbon Spars (top and bottom w/ aluminum joiners)
Carbon Drag Spars
Mid-Weight Balsa Tapered Elevons
Coroplast Tail Section
4-40 Pushrods and Clevises
Large Nylon Control Horns
Radio Gear (Not Included):
2 Hitec HS-225MG Servos
1900 mah Battery
Additional Items Needed (Not Included):
3M 77 Spray Contact Cement
1 1/2" or 2" Strapping Tape
Silicone Glue or CA, Epoxy, Goop, Hot Glue
Colored Packing Tape or Ultracoat for covering

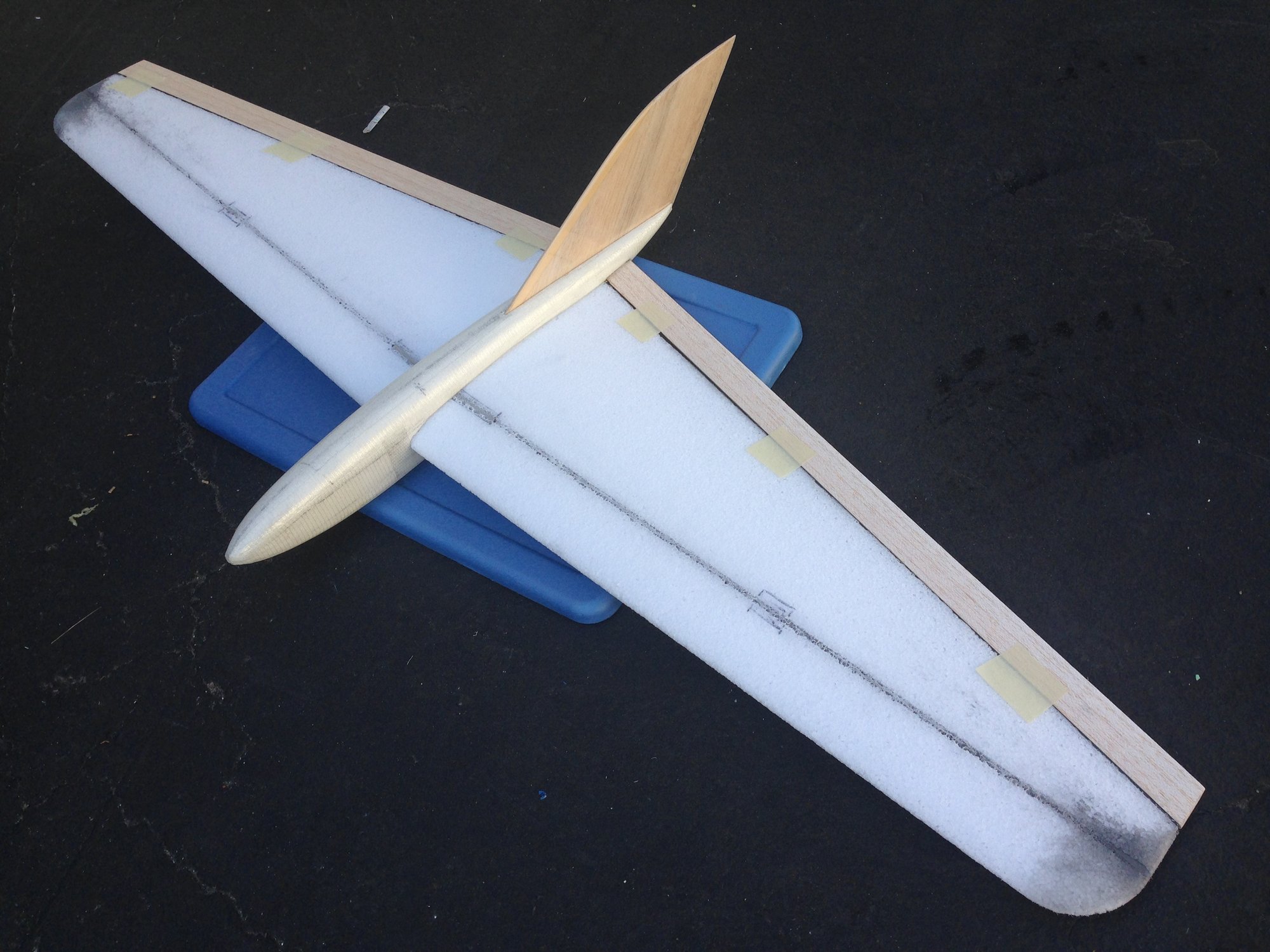

The JW pictured was finished in Topflite Monokote and colored Goop. The possibilities are endless with how you choose to finish your JW. Be creative, and share your creation on rcgroups.com!
(California Residents add 7.75% Sales Tax)
